CEPAI Group Co., Ltd.
$1200.00 - 750.00 / Others
| 1 Others | (Min. Myalelo) | |
| Intlawulo: |
|
|
| Share: |
|
|
Ibhanti: I-chapai
Iintlobo Ze: I-Globe Valvers
Inkxaso YokuZalisa: I-OEM
Indawo Yemvelaphi: China
Iqondo Lokushisa Eliphakathi: Amaqondo obushushu aqhelekileyo
Amandla: Womoya
Ukuhamba Kwendawo: Irhasi, Amanzi, Ioyile
Ulwakhiwo: Ulawulo
| Quantity（Others） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
Ukuba ugqibile ukwenza intlawulo namhlanje, iodolo yakho iya kuthunyelwa ngaphandle komhla wokuhanjiswa.

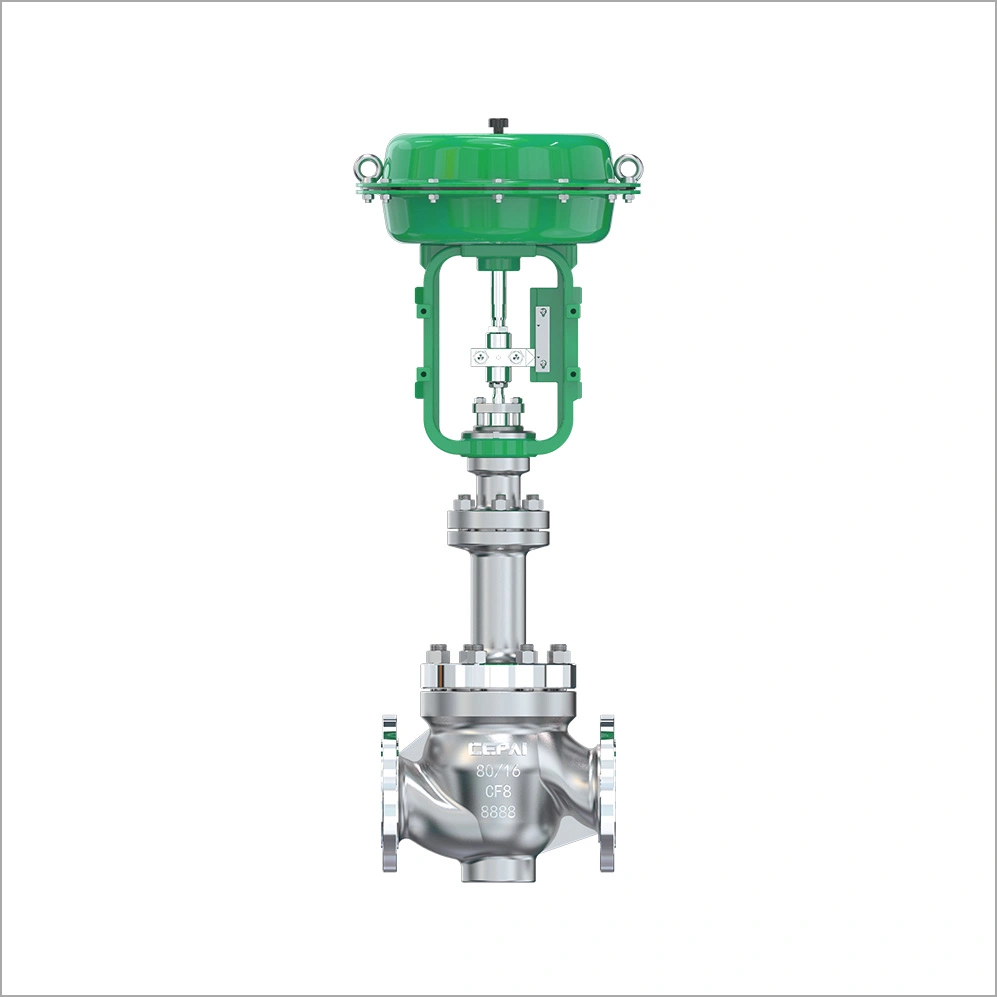

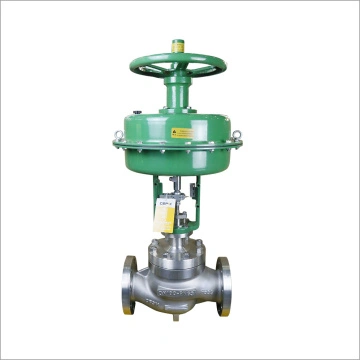

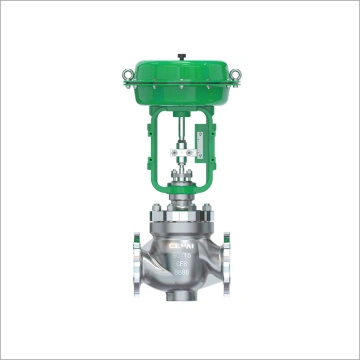

I-Belloumatic Bulbs elawula ivalve yivalve elawulayo elawula ukuvulwa kwevalve nge-Pneumatic Act.
Iinkcazo zayo zemveliso zezi zilandelayo:
Iimveliso eziphambili zenkampani yethu zibandakanya i-valve yokulawula i-Pneumatic, i-Pneumatic Ball Palve, i-valve yombane enombane, i-Fluorine Line yeValve, i-Propex yeVorttex, i-vortex ye-vortx.
| Type | straight-through cage ball valve |
| Nominal diameter | DN15-400mm |
| Nominal pressure | PN16, 40, 64; ANSI150, 300, 600 |
| Connection form: | Flange type |
| Valve body material: | WCB, WC6, WC9, LCB, LC2, LC3, CF8, CF8M, etc. |
| Bonnet type: Standard type (P): | -17 - +230℃ |
| Gland type: | Bolt pressing type |
| Filling: | PTFE V-shaped packing, PTFE asbestos and flexible graphite |
Amacandelo evalve
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear, quick opening |
| Internal materials: | 304, 304 cladding STL, 316, 316 cladding STL, 316L, etc. |
| Bellows material: | 304L, 316L, Harbin C alloy, etc. |
| (1) Pneumatic actuator | |
| Model: | film type |
| Diaphragm material: | ethylene-propylene rubber sandwiched with nylon |
| Spring range: | 20-100KPa, 40-200KPa, 80-240KPa |
| Air supply pressure: | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector: | Rc1/4, Rc3/8 |
| Ambient temperature: | -30 ~ +70℃ |
| Mode of action: | air-opening type (reaction), air-closing type (direct action) |
| Remarks: | |
| ① This model of large diameter or high pressure differential regulating valve can also be equipped with a straight stroke piston actuator. | |
| ② If the ambient temperature is lower than -30℃, please contact Xipai technical personnel. |
| Leakage amount: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B 16.104 Class VI |
Iikhathalo zomkhiqizo : Ivalve yesixhobo > I-valve yolawulo lwePneumatic
