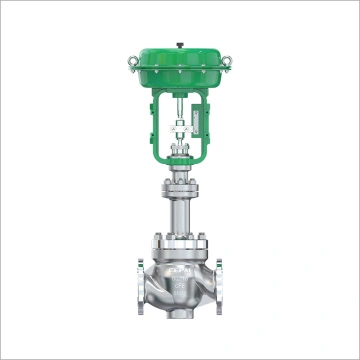

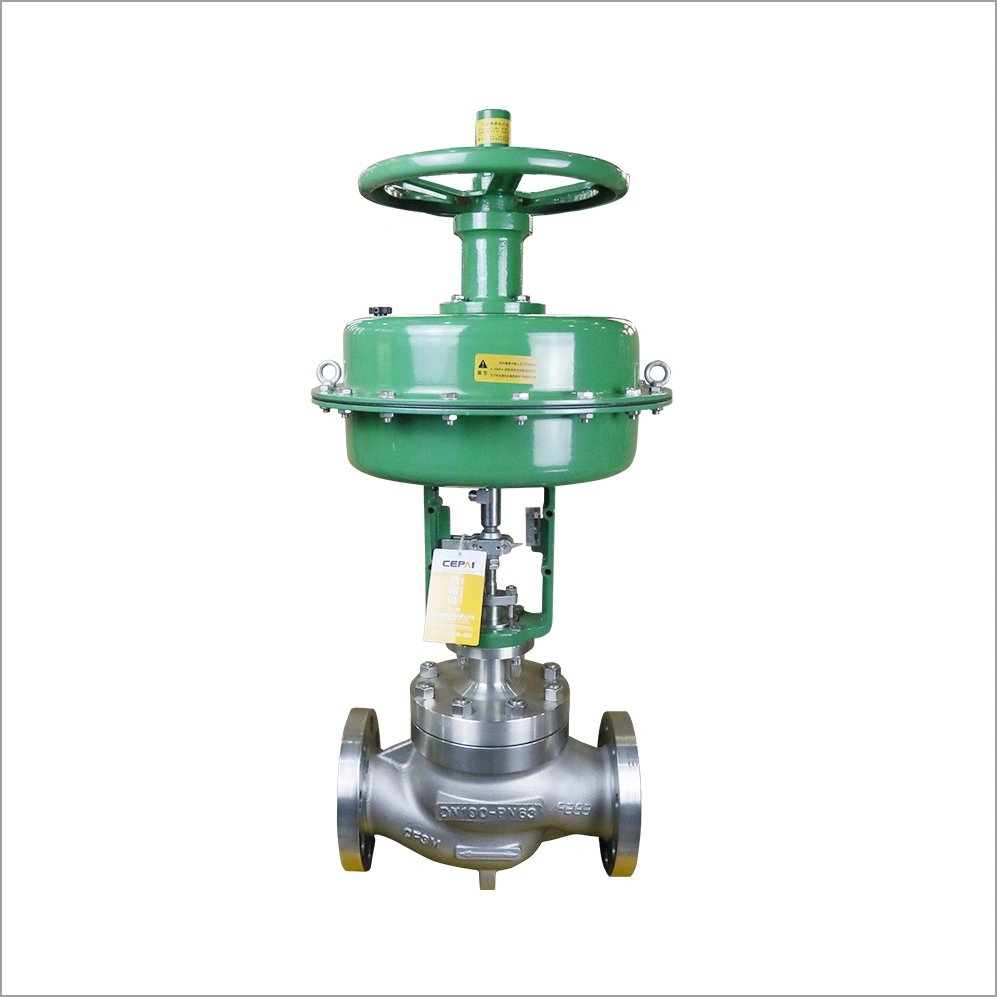

I-Pneumatic Sheeve Daling valve Intshayelelo:
Ulwakhiwo : I-Pneumatic Sheaumatic Sheaulve I-Valve iqulunqwe umzimba we-valve, ikhava yeValve, Core Core, Sleve kunye nePneumatic Actor. Umzimba kunye ne-bonnet zihlala zenziwa nge-iron yentsimbi okanye intsimbi kwaye uchaze uxinzelelo oluphezulu. I-Spool kunye ne-Deeve zenziwe ngentsimbi engenasibala kwaye ixhathise i-corosion elungileyo.
Umgaqo oSebenzayo : Umgaqo wokuSebenza: Umgaqo wokuSebenza we-Pneumatic Sheeve Deveve kukulawula intshukumo ye-valve nge-PGEumatic ARDUTOtor ye-PNEAUTOtor ye-PNEAUTOtor, ukuze utshintshe umsantsa phakathi kwe-valve kunye ne-geseve, kwaye emva koko uhlengahlengise i-fluid flux. Xa i-Pneumator ye-Pneumatic ifumana isiginali yolawulo, ipiston kwi-Pneumatic Actuiator ihamba kwaye iqhuba intshukumo ye-valve ephambili ngokulawula uxinzelelo kunye nokuhamba komthombo womoya.
Iimveliso eziphambili zenkampani zenkampani yesango, i-waljell, i-valve yebhola, iqhulo, ivalve ye-globe . Ndijonge phambili ukuva kuwe.
Ivali yevali
| Type | Straight-through double-seat ball valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16, 40, 64, ANSI150, 300, 600; |
| Connection form: | Flange type |
| Valve body material: | WCB, WC6, WC9, LCB, LC2, LC3, CF8, CF8M, etc. |
| Valve cover form: | Standard type (P): -17-+230℃ |
| Gland type: | Bolt pressing type |
| Filling: | PTFE V-shaped packing, PTFE asbestos and flexible graphite |
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc. |
| Model: | film type |
| Diaphragm material: | ethylene-propylene rubber sandwiched with nylon |
| Spring range: | 20-100KPa, 40-200KPa, 80-240KPa |
| Air supply pressure: | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector: | Rc1/4, Rc3/8 |
| Ambient temperature: | -30 ~ +70℃ |
| Mode of action: | air-opening type (reaction), air-closing type (direct action) |
| Remarks: | |
| ① This model of large diameter or high pressure differential regulating valve can also be equipped with a straight stroke piston actuator. | |
| ② If the ambient temperature is lower than -30℃, please contact Xipai technical personnel. |
| Leakage amount: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B 16.104 Class VI Accessories (configured upon request) Positioner, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, air control valve, speed increaser, position keeping valve, etc. |
