CEPAI Group Co., Ltd.
$1050.00 - 700.00 / Piece/Pieces
| 1 Piece/Pieces | (Min. Myalelo) | |
| Size: | ||
| Material: | ||
| pressure: | ||
| Option: | ||
| Intlawulo: |
|
|
| Share: |
|
|
Ibhanti: I-chapai
Iintlobo Ze: I-Globe Valvers
Inkxaso YokuZalisa: I-OEM
Indawo Yemvelaphi: China
Iqondo Lokushisa Eliphakathi: Iqondo lokushisa eliphezulu
Ukuhamba Kwendawo: Irhasi, Amanzi, Ioyile
Ulwakhiwo: Ulawulo
| Quantity（Piece/Pieces） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
Ukuba ugqibile ukwenza intlawulo namhlanje, iodolo yakho iya kuthunyelwa ngaphandle komhla wokuhanjiswa.
Umzi-mveliso wePetroleum : Isetyenziselwa ukusasaza amaqondo osasazo aphezulu kwi-oyile kunye negesi, ukucoca, ukugcina ioyile kunye nezinye iinkqubo.
Umzi-mveliso wekhemikhali : Ifanelekile ukulawula imithombo yeendaba eziphezulu kwinkqubo yemveliso yemichiza, njenge-ammonia, ethhanol kunye nezinye iinkqubo zemveliso.
Umzi-mveliso wombane : isetyenziselwa ulawulo lwamajeloe eerafisi ephezulu kwinkqubo yokuvelisa amandla, ezinje ngolawulo lwe-boiler, uLawulo lweTurbine, njl.
Ishishini le-MetTulGulical : Ilungele ubushushu obuphezulu olawulo lwenkqubo yemveliso ye-Metriculd, enjengokwenza intsimbi, intsimbi kunye nezinye iinkqubo.
Inkampani yethu ukongeza kwi-Peaumatic Holve, ikwavelisa i-valve yombane ye-Pneumatic, i-valve yebhola yombane, kunye ne-pneumatic blarve, ivalve yebhabhathane, ivelve yombane, i-fluorine ivale , njl.
V Alve B ody

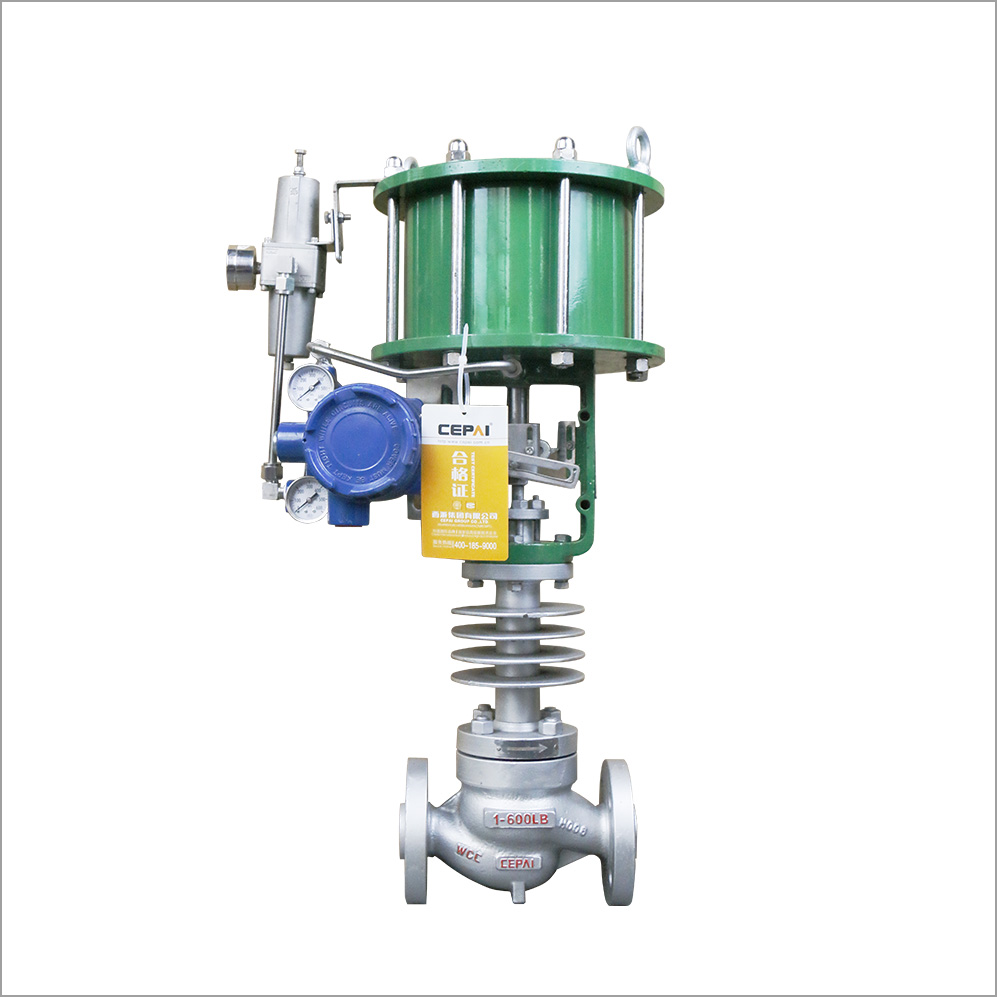

| Type: | straight-through cage ball valve |
| Nominal diameter: | DN15-400mm |
| Nominal pressure: | PN16, 40, 64; ANSI150, 300, 600 |
| Connection form: | flange type |
| Valve body material: | WCB, WC6, WC9, CF8, CF8M, etc. |
| Valve cover form: | >230℃ (with heat sink) |
| Gland type: | Bolt pressing type |
| Filler: | flexible graphite |
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc. |
| Model: | film type |
| Diaphragm material: | ethylene-propylene rubber sandwiched with nylon |
| Spring range: | 20-100KPa, 40-200KPa, 80-240KPa |
| Air supply pressure: | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector: | Rc1/4, Rc3/8 |
| Ambient temperature: | -30 ~ +70℃ |
| Mode of action: | air-opening type (reaction), air-closing type (direct action) |
| Remarks: | |
| ① This model of large diameter or high pressure differential regulating valve can also be equipped with a straight stroke piston actuator. | |
| ② If the ambient temperature is lower than -30℃, please contact Xipai technical personnel. |
Intsebenzo
| Leakage amount: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B 16.104 Class VI Accessories (configured upon request) Positioner, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, air control valve,speed increaser, position keeping valve, etc. |
Iikhathalo zomkhiqizo : Ivalve yesixhobo > I-valve yolawulo lwePneumatic
